  • Galvanized and Stainless Steel Compound Close Mesh Conveyor Belt for Unstable Items Transferring

    General Introduction:
    Woven wire conveyor belt has a structure of individual wires mounted on cross rods. It can be driven by side chains and sprockets. The aperture size can be altered by fitting washers or spacing pieces. This flexible flat and strong construction allows for easy cleaning, is virtually non-clogging and has a smooth even top surface allowing articles to move freely.

    Features: Compound closely woven wire mesh belt has close mesh, firm belt and high tensile strength.

    This type of woven wire belting can use the thickest wire diameter and provides the highest tension. Smooth belt surface is appropriate for transferring unstable items.


    Wire Materials Choices: Mild steel, carbon galvanized steel, 304, 302, 316 stainless steel. Other materials are available upon request.

    Uses: These wire belts are made up of very close meshes and smooth flat surfaces, making them ideal for carrying very fine or small articles and especially suitable for supporting unstable items.

    Applications include: Conveying of biscuits, cereals, chemicals, glassware, electrical components, continuous baking direct on the belt.

    Close Mesh Woven Flat Wire BeltGalvanized Steel Belts

    Stainless Steel Wire Mesh Belt Conveyor Type:

    Designs of Wire Mesh Conveyor Belts

    • Chain Drive Balanced Weave
    • Balanced Weave Mesh Belt
    • Flat Wire Belt

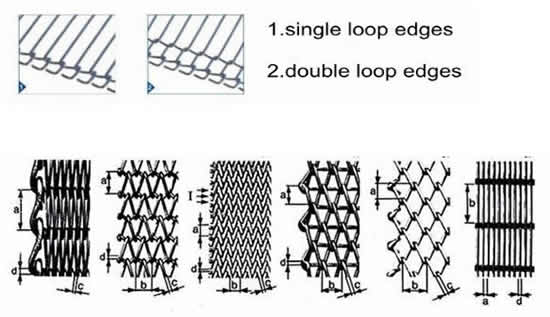

    Wire mesh belt conveyor edges type: single loop edge, double loop edge , C-cure edges.

    Loop Edges for Conveyor Belts
