Double Rod Reinforced Chain Wire Drainage Belt

General Introduction: Double Rod Reinforced Chain Mesh Conveyor Belts  are made from stainless steel, carbon steel, iron chrominum aluminum wire, nickel chromium wire or other alloys. Dezhong supplies high quality rod reinforced stainless steel wire belts from ss 201,304,316,316L.

Double Balanced Spiral Woven Conveyor Belts with Rod Reinforcement

Double Balanced Spiral Woven Belts is made by using coil pairs of each handing intermeshing and then linking the crimped cross wire with pairs of intermeshing opposite hand coils on a repeat pattern down the length. This style allows for closer pitching of coils across the width for small product handling.

Structures: Pre-formed wire woven.

Wire diameter:0.9mm-2.8mm
Pitch:4mm to 19.05mm
Width:10mm-3m
Edge pattern: single loop (most common) and double looped edges for special occasions.

Rod Reinforced Wire Mesh Conveyor Belt can be made into various rod sizes, mesh sizes and pitches.

Belt Roll Size:  According to coming drawing, sample or order.

Features: Rod reinforced belting has good rotation, anti-fracture, oxidation, uniform thickness, smooth operation.

 Uses: Double reinforced conveyor belt has more applications than any other woven wire mesh conveyor belt.  The uses in conveying and draining application are endless.

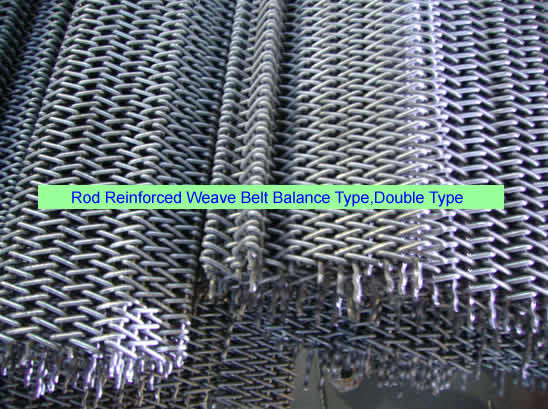

Rod Reinforced Weave Belt Balance Type, Double Type

Materials names Heat resistance Other
SUS304 750°C Often-used mesh belt
SUS321 750°C Often-used mesh belt
SUS316 750°C Corrosion-resistant
SUS310 1150°C Working steadily in high temperature
SUS314 1250°C Very good anti-oxdant and heat resistance

Balanced Reinforced Chain Wire Netting Belt

Ladder belt with rod reinforcment:

Steel Conveying Drainage Belting
